Efficiently going full circle

Closed-Loop Conveyor Systems

Closed-loop conveyor systems for smooth operations

Continuous, space-saving, efficient

While they are rarely found at logistics service providers, closed-loop conveyor systems are highly popular in manufacturing environments. They enable a continuous flow of materials while requiring minimal space, making them an attractive alternative to conventional linear conveyor systems.

They provide a cost-effective way to transport light to medium-weight goods, can negotiate inclines and curves, and may extend over several kilometres. Particularly in industries with high throughput requirements and limited space, closed-loop conveyor systems offer new opportunities to optimise production and logistics processes.

Operating Principle and System Design

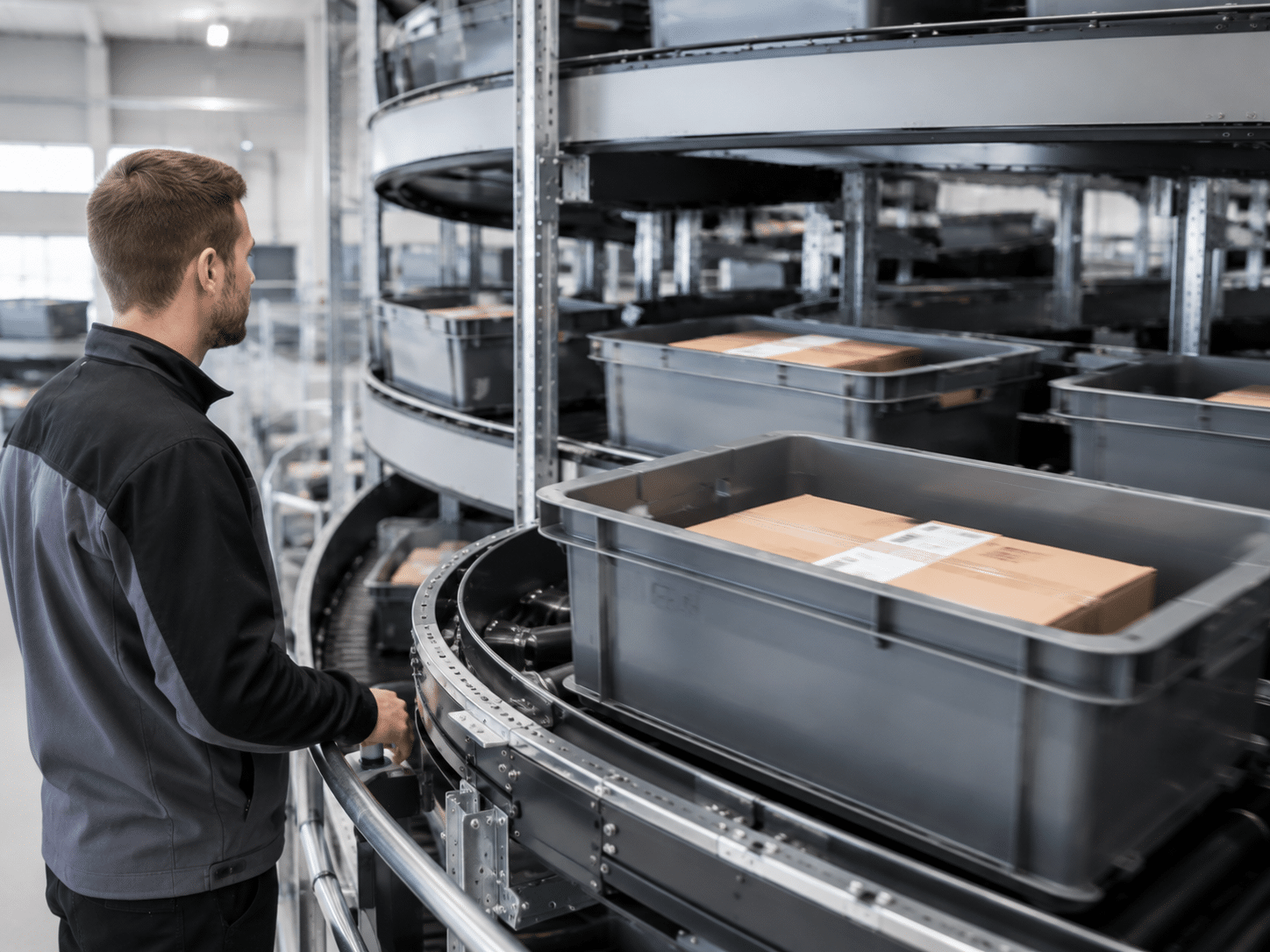

Closed-loop conveyors are circulation systems in which goods are transported on carriers or load carriers along a closed track, continuously moving around the system.

The routes they follow are only circular in exceptional cases. Unlike linear conveyor lines, they form a continuous loop that allows materials to remain within the system and to be introduced or discharged as required.

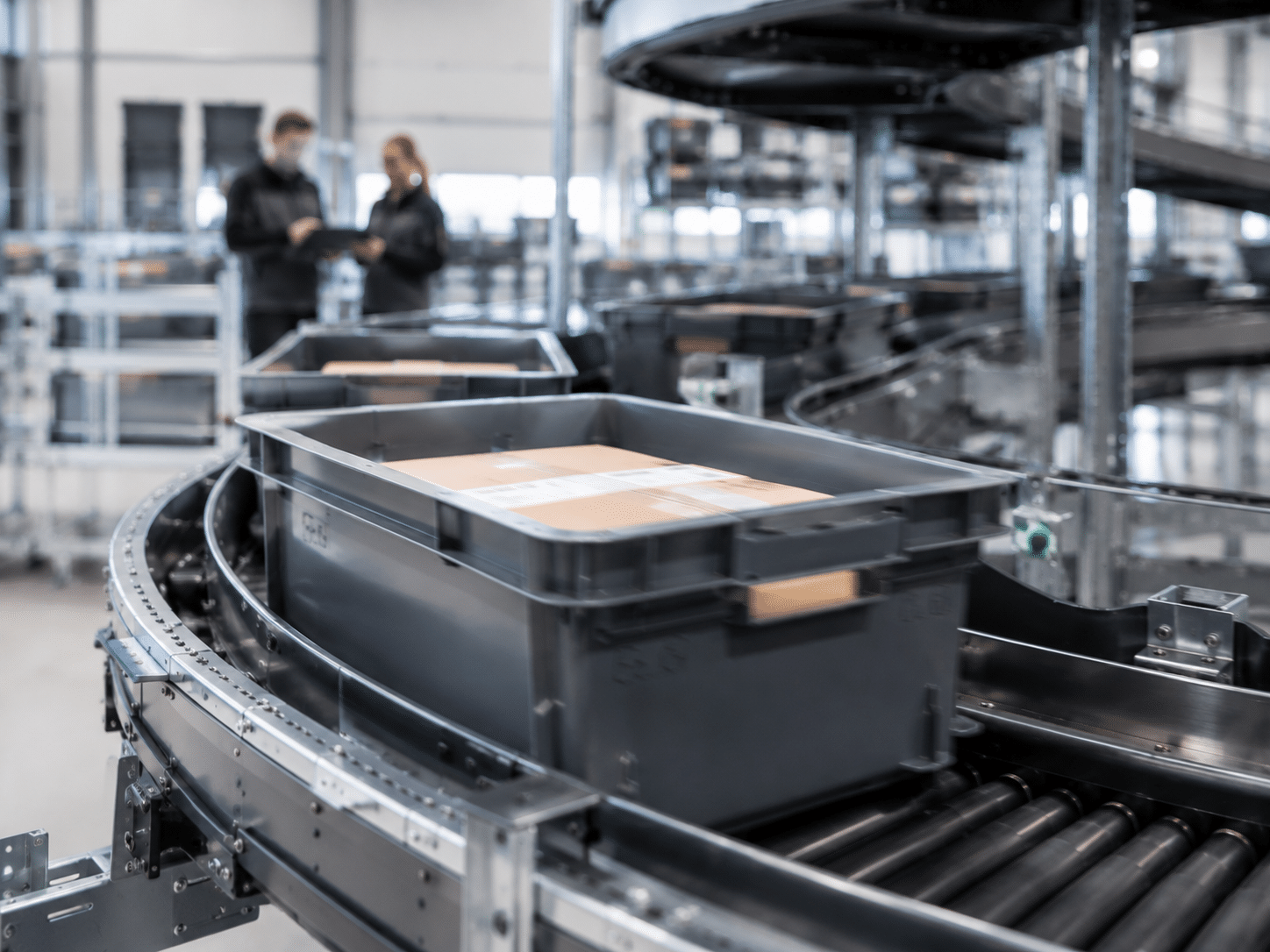

The basic principle is relatively straightforward: a drive system sets a chain, belt or specialised carrier structure in motion. Defined positions on the system accommodate containers, cartons or individual components. Due to the closed-loop design, the goods can circulate continuously until they are removed or transferred for further processing at a designated station.

Modern closed-loop conveyor systems have a modular design and can be adapted flexibly to different requirements. Their size, speed, load capacity and control technology may vary considerably depending on the application.

Space efficiency as
a Key Advantage

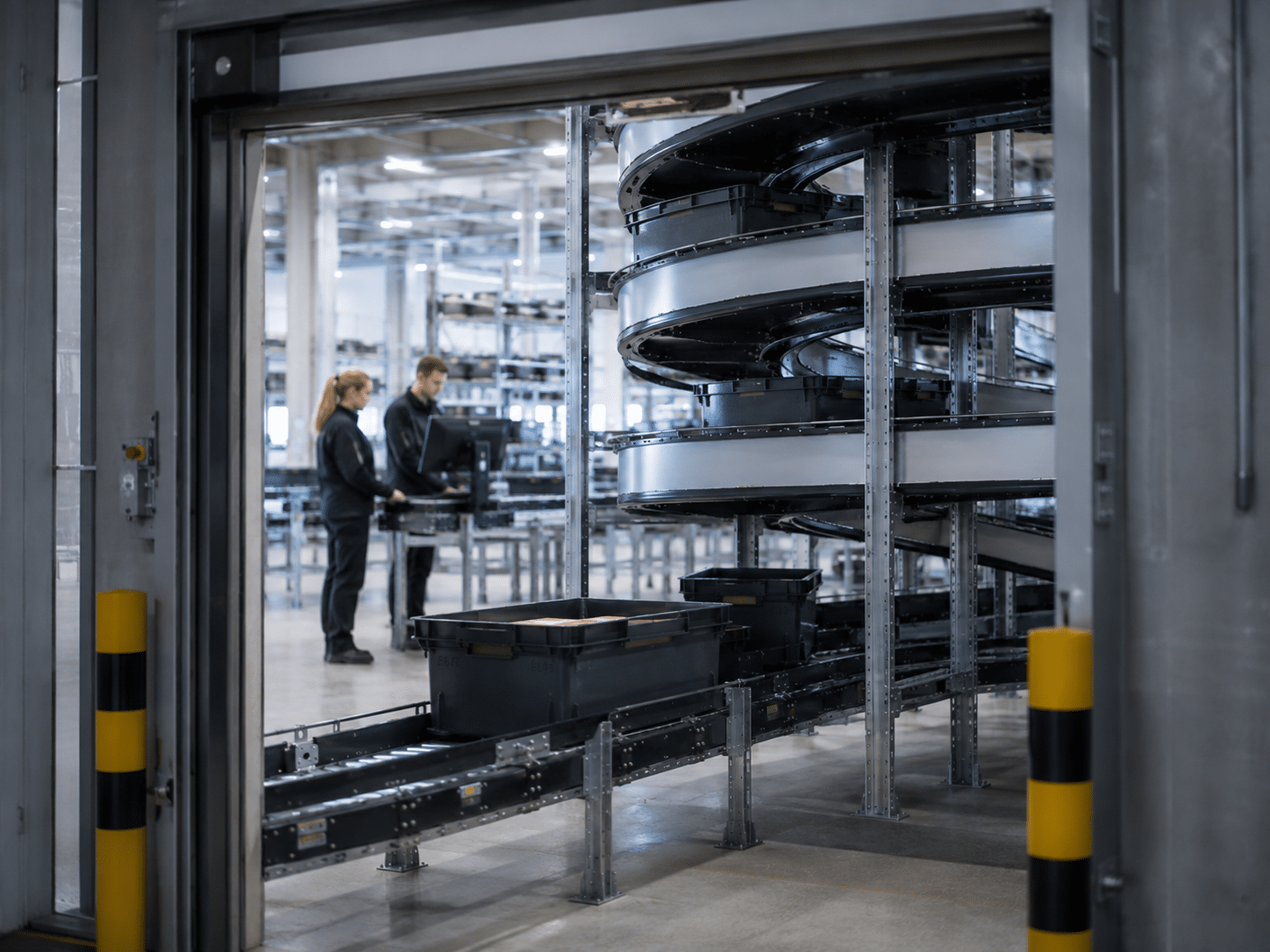

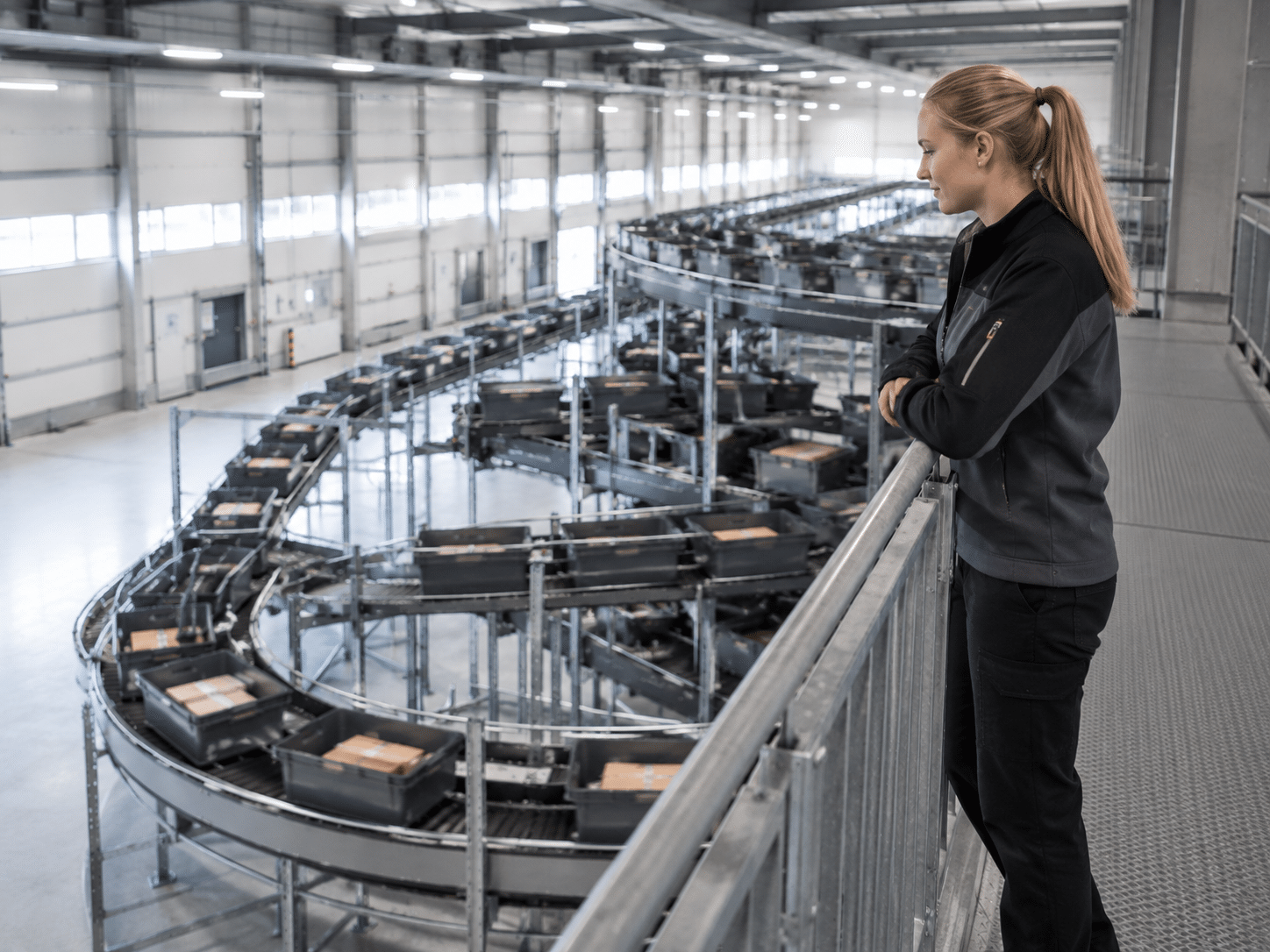

One of the main advantages of closed-loop conveyor systems is their compact design. While conventional conveyor lines often require a considerable amount of linear space, closed-loop systems make more efficient use of the available area by forming a self-contained circuit. This can be particularly important in production or warehouse environments where space is limited.

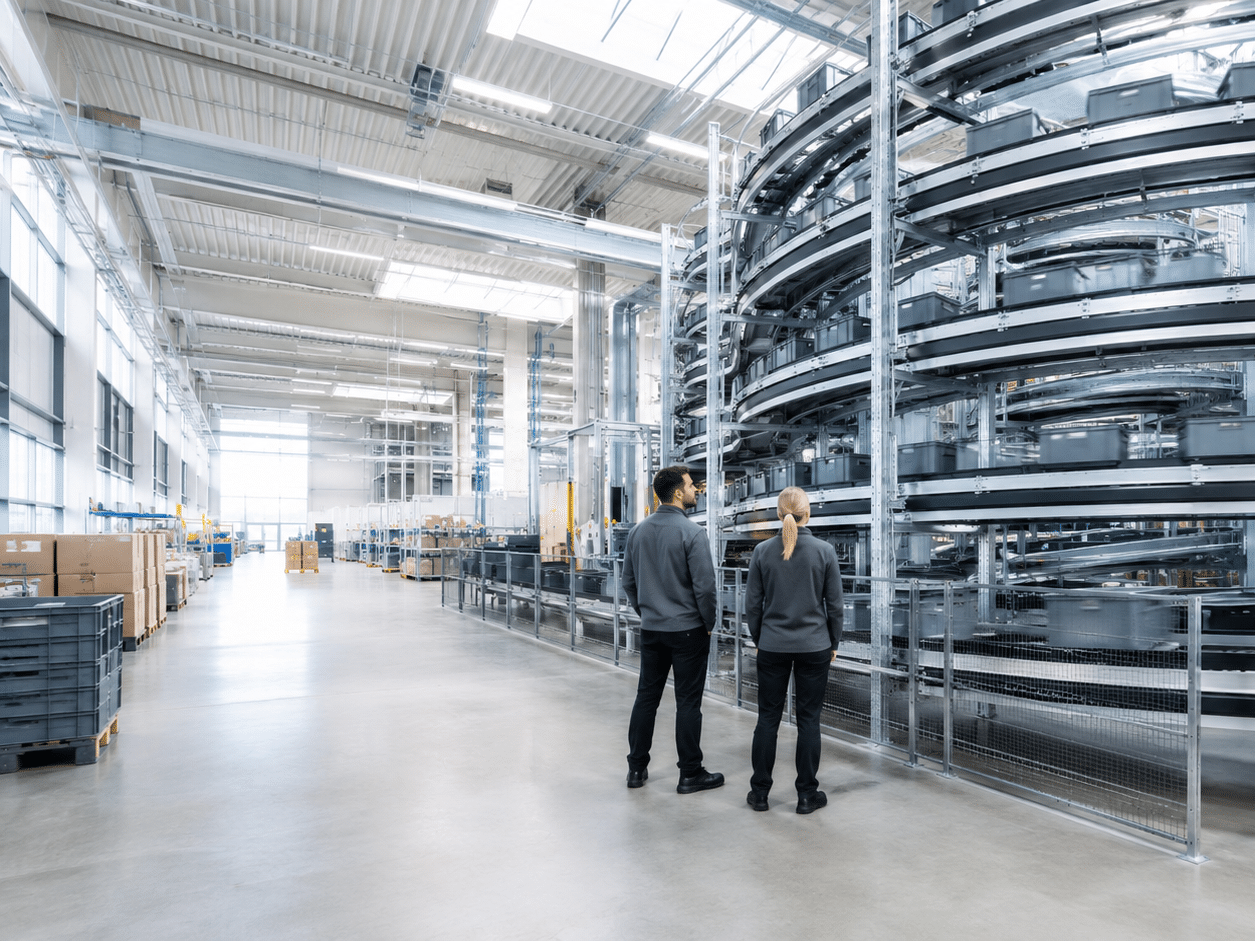

The ability to arrange multiple levels above one another or integrate the conveyor into existing structures helps companies make optimum use of the available space. This is especially valuable in urban logistics centres and established production facilities where additional expansion space is often limited.

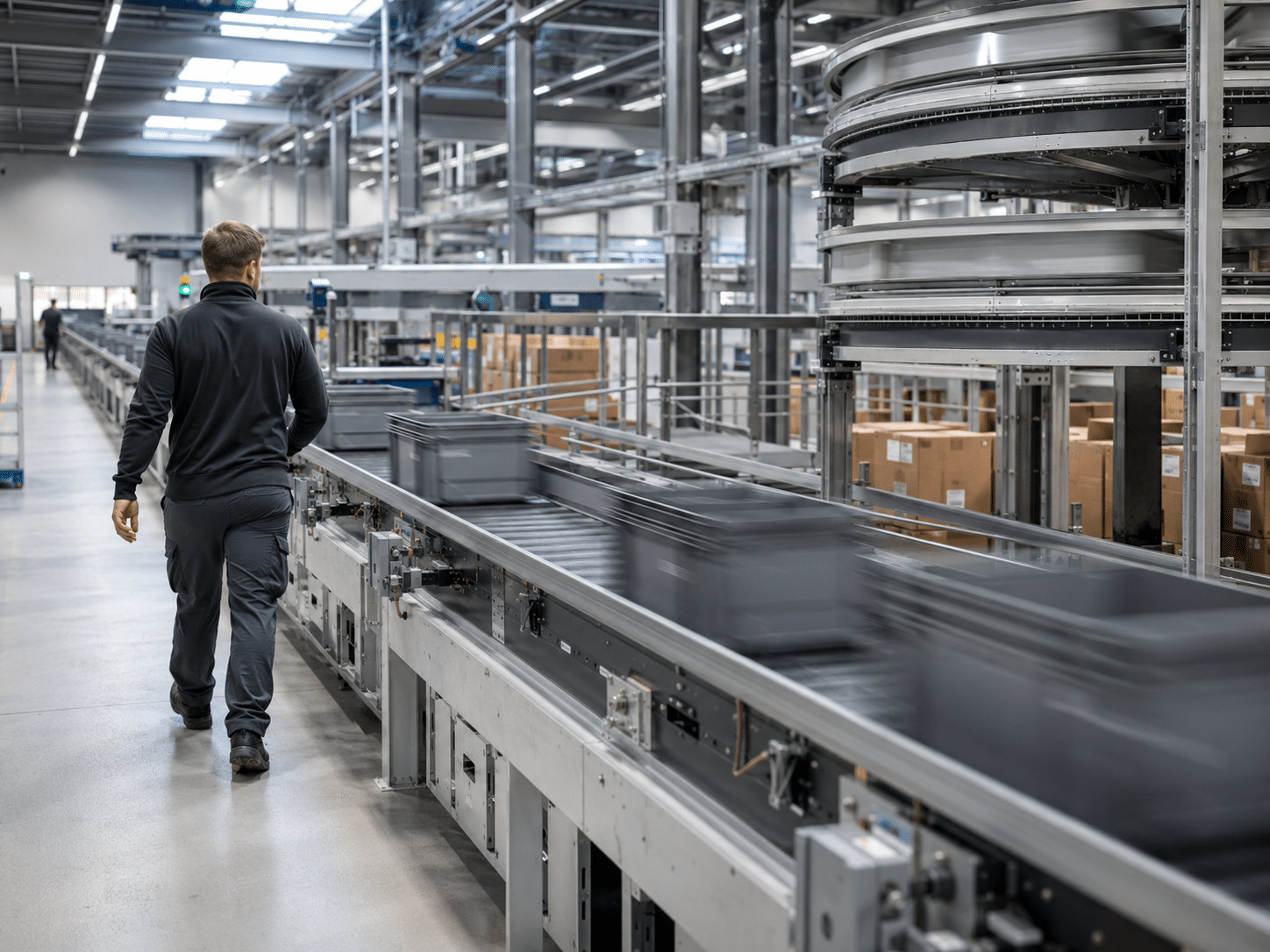

Continuous Material Flow

Another key advantage is the continuous flow of materials. Unlike cycle-based systems, closed-loop conveyors enable goods to remain in constant motion. This reduces downtime and ensures more consistent processes.

This feature is particularly relevant for applications requiring a constant throughput, such as series production or order picking. Materials are continuously available at designated transfer points without employees or downstream processes having to wait for the next cycle. This improves both efficiency and process stability.

Flexibility and Scalability

Closed-loop conveyor systems also offer a high degree of flexibility. They can be used either as stand-alone solutions or as part of complex intralogistics systems. Integration with existing warehouse management systems (WMS) or transport management systems (TMS) is generally straightforward.

Thanks to their modular design, closed-loop conveyor systems can be expanded or adapted as requirements change. Additional infeed and discharge points, modified operating speeds or new load carriers can be implemented relatively easily. This makes the technology a particularly future-proof solution.

Advantages of Closed-Loop Conveyor Systems:

Space efficiency:
The closed-loop design makes optimum use of the available space.
Continuous material flow:
Goods are transported without interruption, making the systems ideal for high throughput rates.
High efficiency:
Reduced downtime and consistent conveyor movement improve overall performance.
Flexibility:
Systems can be adapted to different layouts and types of goods.
Gentle handling:
Smooth movements minimise the risk of damage to sensitive goods.

Low maintenance requirements:
Robust construction and a limited number of moving components help reduce maintenance costs.
Energy efficiency:
Consistent operation contributes to low energy consumption.
Scalability:
Systems can be expanded or adapted whenever requirements change.
Automation capability:
Closed-loop conveyors can be integrated easily into existing automated warehouse and conveyor systems.
Reduced staffing requirements:
Automated operation reduces the need for manual intervention.

Typical Applications

Closed-loop conveyor systems can be used in a wide range of applications. They are particularly common in production environments, where they supply components to assembly lines.

They are also used in order-picking operations, for example to circulate and present items at picking stations. Another application is sorting, where goods are distributed to different destination areas. Closed-loop conveyors can also serve as buffer systems, temporarily storing products when downstream processes are interrupted.

In the automotive industry, for example, closed-loop conveyor systems are often used to supply components to assembly stations on a just-in-time basis. In e-commerce logistics, they support efficient picking processes by continuously moving products past individual workstations.

Applications of Closed-Loop Conveyor Systems:

Production

Supplying components along assembly lines

Order picking

Circulating items and presenting them for picking processes

Sorting

Distributing goods to different destination areas

Buffering

Temporarily storing products during process interruptions

Improving Efficiency Through Automation

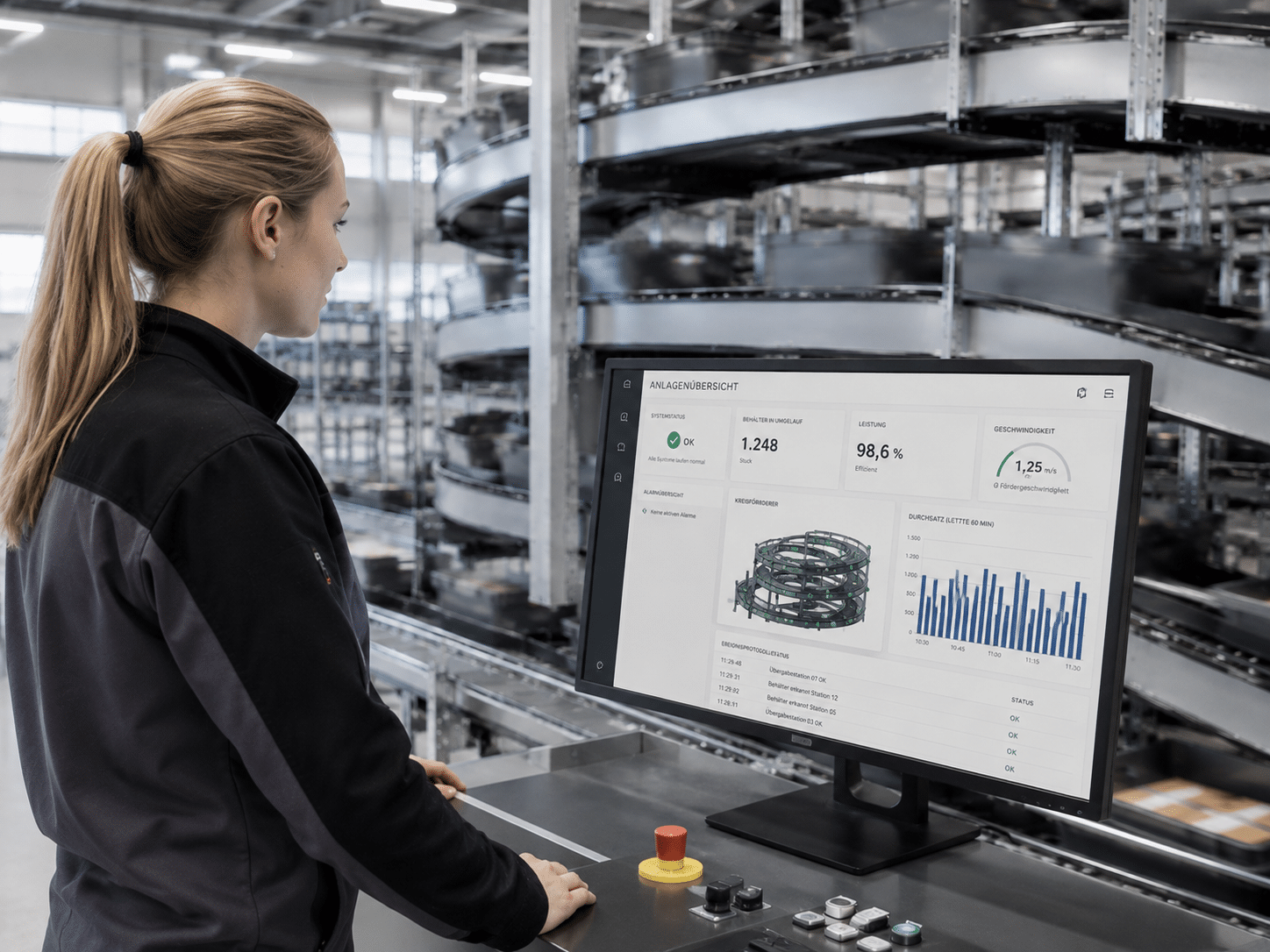

Closed-loop conveyor systems achieve their full potential when combined with automation technologies. Sensors, intelligent control systems and digital interfaces enable precise control of the material flow.

Modern control technology allows goods to be routed, prioritised and tracked individually. Processes can therefore be adapted dynamically to current requirements, while transparency throughout the system is significantly improved. At the same time, potential sources of error can be reduced and process reliability increased.

Another advantage is the option of integrating the system into digital twins or simulation tools. This enables companies to optimise installations during the planning phase and identify potential bottlenecks at an early stage.

Ergonomics and
Occupational Safety

In addition to economic considerations, ergonomics also plays an important role. Closed-loop conveyor systems can be designed to support employees at their workstations effectively. Goods can be presented at an ergonomically suitable height, reducing the physical strain placed on employees.

Closed systems can also improve occupational safety. As conveyor movements take place within defined structures, potential hazardous areas can be minimised. Modern safety concepts additionally ensure reliable operation, even at high conveyor speeds.

Challenges and Limitations

Despite their many advantages, closed-loop conveyor systems are not the ideal solution for every application. One of the main challenges is the initial planning process. As the conveyor forms a closed system, material flows and process requirements must be analysed in considerable detail.

The initial investment may also be higher than for simple conveyor lines. However, these additional costs are often offset by long-term efficiency gains and improved utilisation of the available space.

System complexity is another consideration. Large installations with numerous infeed and discharge points require powerful control technology to ensure smooth and reliable operation.

Future Prospects

Closed-loop conveyor systems are expected to become increasingly important in the future. Trends such as urbanisation, growing pressure on available space and the increasing demand for automation all support the use of compact and efficient conveyor systems.

New technologies also offer additional potential. Artificial intelligence can help optimise material flows in real time and identify maintenance requirements at an early stage. Combining closed-loop conveyor systems with autonomous mobile robots (AMRs) also creates promising opportunities for hybrid logistics systems.

Conclusion

Closed-loop conveyor systems provide a powerful solution for modern intralogistics and production processes. Their main strengths include continuous conveying, a space-saving design and a high degree of flexibility. When combined with modern automation technologies, they enable efficient, stable and future-proof material flows.

Companies looking to optimise their processes while making better use of the available space should therefore consider implementing a closed-loop conveyor system. With careful planning and integration, these systems can make a significant contribution to smooth operations and sustainable commercial success.

We will be happy to advise you on our products

We are here for you.

Give us a call or send us a message. We look forward to welcoming you.

proLogistik Holding GmbH
Fallgatter 1
44369 Dortmund

Tel.: +49 (0) 231 5194-0
Tel.: +41 (0) 44 200 40-00
Tél.: +33 (0) 251 81 85 85

info@prologistik.com

Questions and Answers

FAQ

A closed-loop conveyor is a conveyor system in which goods are transported continuously along a closed circulation path. The goods remain in circulation until they are removed or transferred for further processing at designated points.

A drive system moves a chain, belt or carrier structure. Load carriers attached to this structure transport goods along a closed route continuously and without interruption.

Closed-loop conveyor systems require less space, enable a continuous material flow, reduce downtime and offer a high degree of flexibility while operating efficiently.

They are particularly suitable for light to medium-weight goods such as cartons, containers or individual components that need to be transported regularly and at a consistent throughput rate.

Typical applications include production and assembly lines, order picking, sorting and the buffering of goods, for example in the automotive industry or e-commerce.

Durch ihre geschlossene Bauweise und die Möglichkeit, mehrere Ebenen zu nutzen, können Kreisförderer den vorhandenen Raum deutlich effizienter ausnutzen als klassische lineare Förderstrecken.

Yes. Modern closed-loop conveyor systems have a modular design and can be integrated easily into existing IT and conveyor systems, including warehouse management systems and transport management systems.

Their modular design allows closed-loop conveyor systems to be expanded or adapted whenever requirements change, for example by adding further infeed and discharge points.

Automation plays a major role. Sensors and intelligent control systems can optimise material flows, automate processes and significantly improve operational transparency.

Yes. Planning can be demanding because material flows must be analysed in detail. The investment costs may also be higher than those of basic conveyor systems, although they are often offset by long-term efficiency gains.
